Dairy Fittings

Manufacturer and supplier of Stainless Steel Milk Pipe Fittings in India, check sizes and dimensions

Rolled Steel is a manufacturer and exporter of Stainless Steel Dairy Fittings in Mumbai, India. We produce all types of Hygienic Fittings such as Cider Fittings and Brewery Fittings. These Dairy fittings are suitable for the Pharmaceutical, Food & Beverage, Dairy, and Brewing industry. These Fittings are available in stainless steel 304 & 316 grades which makes them easy to clean and Hygienic.

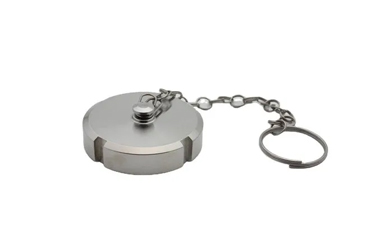

We offer Forged & CNC machined SMS Fittings in form of SMS Nut, SMS Male, SMS Union, SMS Liner, SMS Joint Ring and SMS Blank. Dairy fittings available in 1 Inch to 4 Inch in Stainless Steel material.

Specification For Stainless Steel Dairy Fittings

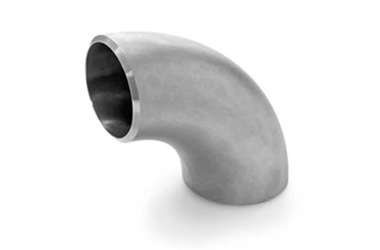

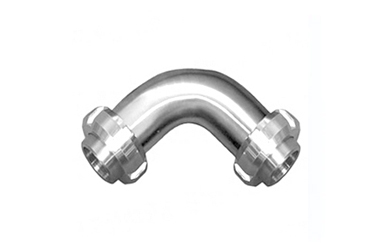

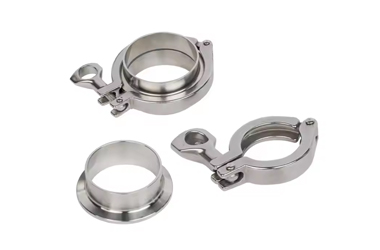

Range	Dairy Bends, Dairy Reducer, TC Clamps, Pipe Holder Clamp,Hose Clamps, Tri Clamp Tee, Dairy Tee, SMS Union, DIN Union, TC Ferrule, SS Spray Balls, Tri Clamp Elbow, Tri Clamp Reducer.
Thickness	1.5mm TO 3mm, 16 SWG, 12 SWG, 14 SWG
Outside Diameter	1/4” N.B. – 8” N.B., 1/4” O.D. – 8” O.D.
Sizes	1/4″ to 6″
Standards	BSP / NPT / DIN / SMS / IDF / TRICLOVER
Grade	SS 304, SS 304L, SS 316, SS 316L
Finish	Electro Polished, Non Electro Polished, Mechanical Polish, 320 Grit, 400 Grit, 500 Grit, 800 Grit

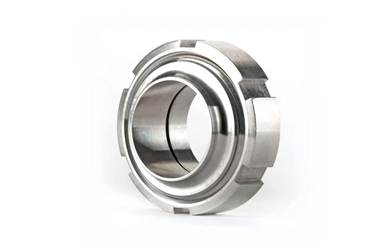

Production Range of Dairy Union

Standards	SMS Standard, DIN Standard, ISO Standard, Other International Specifications
Connection Mode	Weld Ends, As per Custom Specification, Threaded
Standard Sizes	1/2” – 4”, DN 10 – DN 100
Application	Beer, Food, Dairy, Beverage, Cosmetics, Pharmacy, and Chemical Industries
Surface Finish	Polished, Machined
Grades	SS 304, SS 316, SS 316L

Stainless Steel Dairy Fittings Dimensions

Nominal Clamp Size	Length C (mm)	Flange Ø (mm)	Rad. B (mm)	Width W (mm)	Mass (kg)
1/2″ – 3/4″	60.0	25.0	63.0	17.0	0.13
DN 10 / 15 / 20	69.0	34.0	73.0	17.0	0.17
1″ – 1 1/2″	85.0	50.5	78.0	17.0	0.21
2″	99.0	64.0	82.0	17.0	0.25
2 1/2″	112.0	77.5	89.0	17.0	0.35
3″	126.0	91.0	96.0	17.0	0.42
3 1/2″	140.0	106.0	103.0	17.0	0.44
4″	154.0	119.0	110.0	17.0	0.51
4 1/2″	165.0	130.0	115.0	17.0	0.60
6″	216.0	167.0	134.0	25.0	0.88
